EvoMax – Concrete Niche Light

Niche Light – Concrete

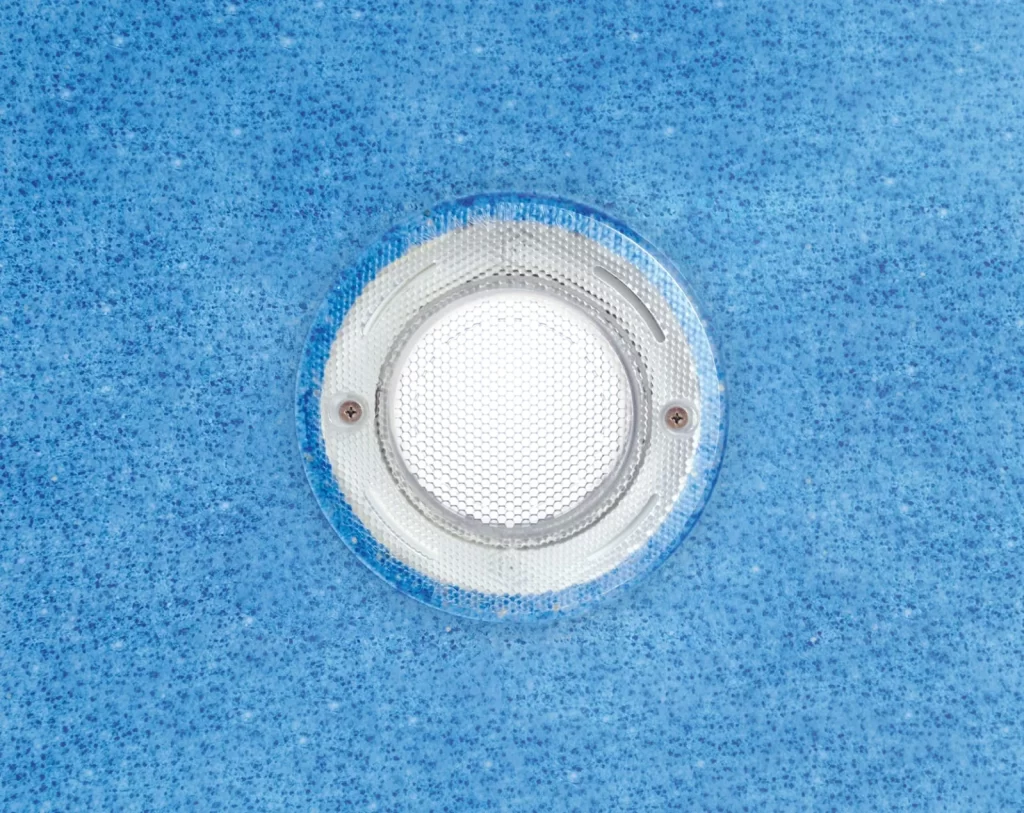

The EvoMAX LED Pool Lighting System is Aqua-Quip’s premium niche lighting option for concrete pools, offering maximum illumination whilst preserving a flush profile. The lens design on EvoMAX provides unrivalled light diffusion and distinctive side lighting effects – eliminating hot spots. During the day, the clear lens blends in with the pool interior colour.

EvoMAX LED lights are available in fixed colours of blue, white and warm-white as well as RGB+W multi-colour.

Pro Series RGB+W technology incorporates cool white LEDs, providing a brighter and cleaner white light from a multi-colour light engine.

Multi-colour lights can be operated from Aqua-Quip’s InstaTouch Smart Lighting Controller, a wall switch or a variety of third-party pool automation systems.

The patented and innovative Quick Connect Plug Kit allows the cable to be detached from the pool light, simplifying the installation process.

Connectivity is the key requirement for easy installation, retro-fitting and servicing. Aqua-Quip’s innovative and patented waterproof Plug Kit is user-friendly and clearly the industry’s best design. It is supplied factory fitted to all Aqua-Quip pool light cables and allows the use of existing cables in retro-fit applications.

EvoMAX is also the perfect choice for replacement of existing niche lights in concrete pools.

The elegance of the lighting system can be further enhanced with the addition of the optional stainless steel trim ring, creating some spectacular visual effects.

The EvoMAX system incorporates the latest generation LED technology and thermal management system to ensure maximum light output and reliability. In addition, EvoMAX lights are energy efficient, the entire system is extra-low-voltage ensuring safety at all times.
Specifications
Suitable forNew Concrete Pools, Spas, Water Features, Catch Tanks
Stainless Steel OptionYes, P/N: MXA056
Cable Lengths & Gauge20m, 30m, 40m (0.75mm²), 50m (1.5mm²) Custom lengths available
Detachable CableYes, Plug Kit is factory fitted to cable and is field re-wirable
Operating Voltage12v AC
Rating  IPX8
IES Data  Available upon request
Fault ProtectionThermal & Overcurrent
CertificationAS/NZS 60598.2.18:2025, UL676
Multi-ColourBlueWhiteWarm White
Power Consumption25 VA Max21 VA15 VA15 VA
Light ColourProgram Dependant470 nm6500K2850K
Light Output (typical)Up to 795 lm300 lm985 lm985 lm
