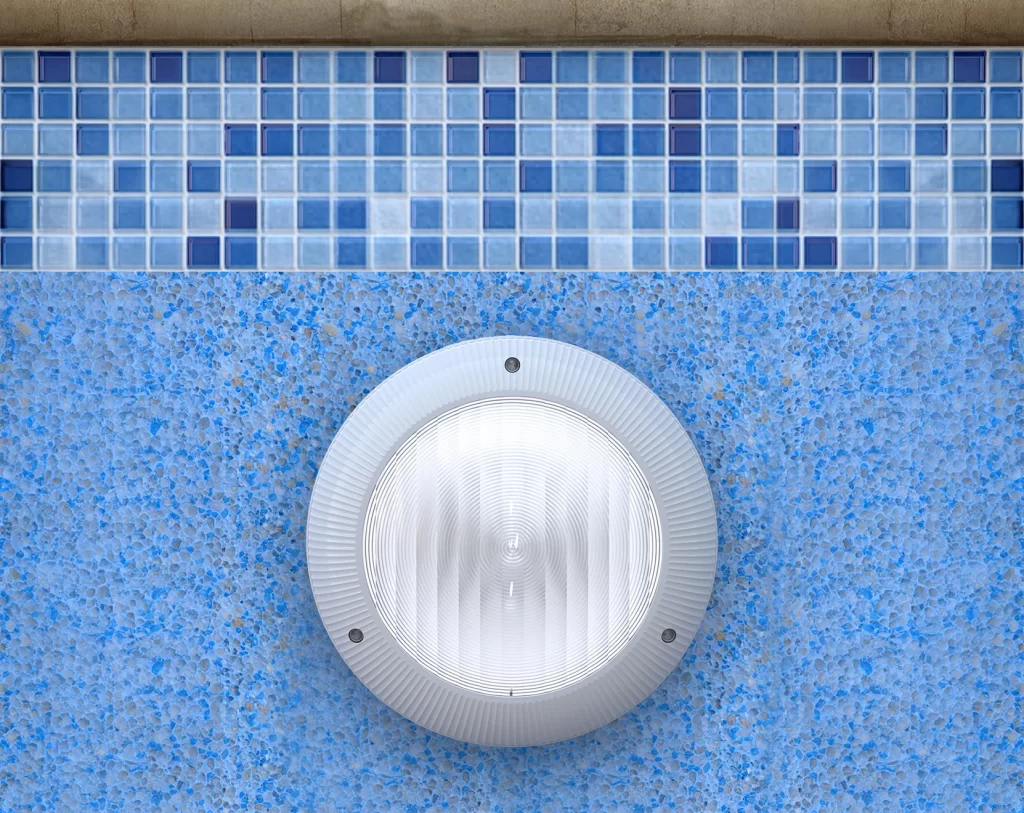

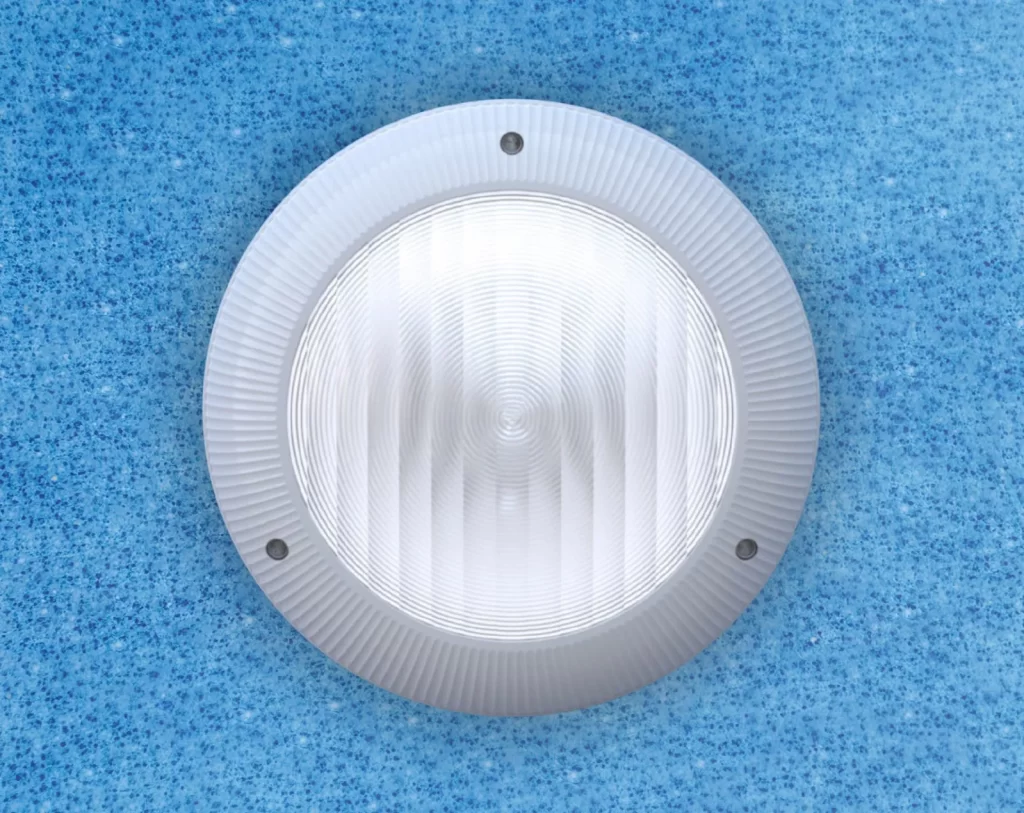

Aqua-Quip’s QC Series Surface Mounted light is the ideal choice for retro-fitting older style surface mounted lights.
- Stylish art-deco construction with robust mounting hardware makes it ideal for all surface-mounted applications.

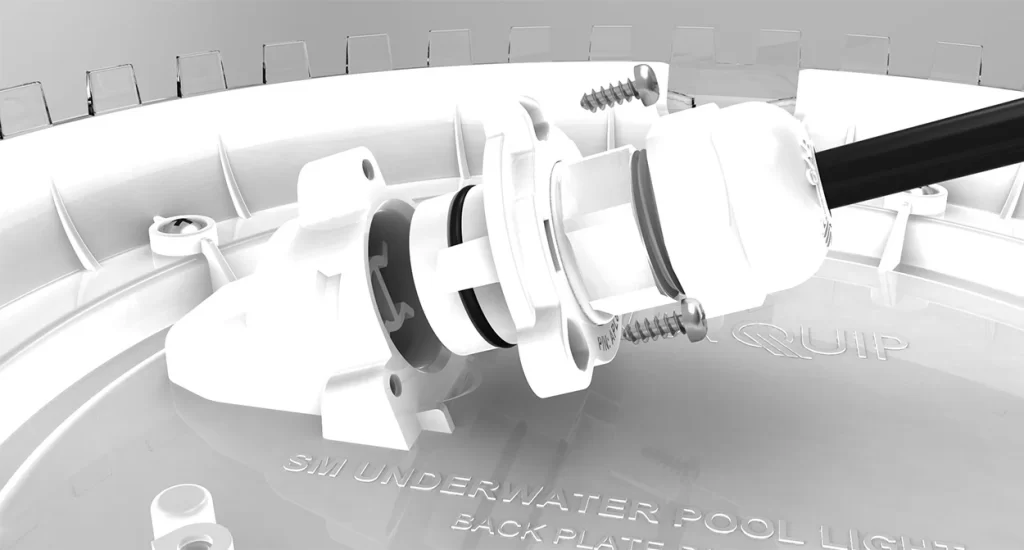

- The Quick Connect Plug Kit enables simple installation for both new pool construction and when used to replace other brands. The plug kit can be connected up to a variety of cable thicknesses and provides full detachable cable functionality.
- The QC Series Light incorporates Variable Voltage Technology, allowing the light to be operated from voltage ranging from 12V AC ~ 32V AC.
- Large lens diameter enables greater illumination.
- Available in fixed colours of blue, white and warm white – as well as Quattro Quad Colour and Multi-Colour.
- Multi-Colour lights can be operated from Aqua-Quip’s InstaTouch Smart Lighting Controller or Wi-Fi Controller, a wall switch or a variety of third party control systems.
Replacing your existing pool lights to Aqua-Quip can usually be completed without lowering the pool water level or changing the transformer.
Aqua-Quip Surface Mounted Retro-Fit Lights are able to convert the following brands in concrete pools: Stroud Compact 150, Stroud SM400, Swimworld, Waterco, Filtrite, Spa Electrics, Poolrite, Autumn Solar, Questa, Chameleon.
The White QC Design Ring is included with every QC Surface Mounted Light, and is also available in grey (metallic-look) as an option.
See Retro-Fit page for QC Retro-Fit identification chart.
| Specifications | |
| Suitable for | New and existing concrete pools |
| Fascia Colour Options | White (standard), Metallic Grey (add a ‘G’ to order code if requiring a grey fascia) |
| Cable Lengths | 20m, 30m |
| Cable Gauge | 0.75mm², 2 Core |
| Detachable Cable | Yes, Plug Kit is factory fitted to supply cable |
| Operating Voltage | 12v AC ~ 32v AC Rating IPX8 IES Data Available upon request |
| Fault Protection | Thermal & Overcurrent |
| Certification | AS/NZS 60598.2.18:2025, CE |
| For Retro-Fit QC Lights: No cable supplied. The included Plug Kit is to be connected to the existing cable. | |
| Standard QC Series | Multi-Colour | Blue | White | Warm White |
| Power Consumption | 30 VA Max | 25 VA | 25 VA | 25 VA |
| Light Colour | Program Dependant | 475 nm | >5000K | 3000K |
| Light Output (typical) | Up to 590 lm | 300 lm | 1050 lm | 1050 lm |
| QC Quattro Series | White | Blue | Aqua | Green |
| Power Consumption | 12 VA | 12 VA | 20 VA | 12 VA |
| Light Colour | 6500K | 470 nm | 490 nm | 530 nm |
| Light Output (typical) | 540 lm | 135 lm | 530 lm | 400 lm |

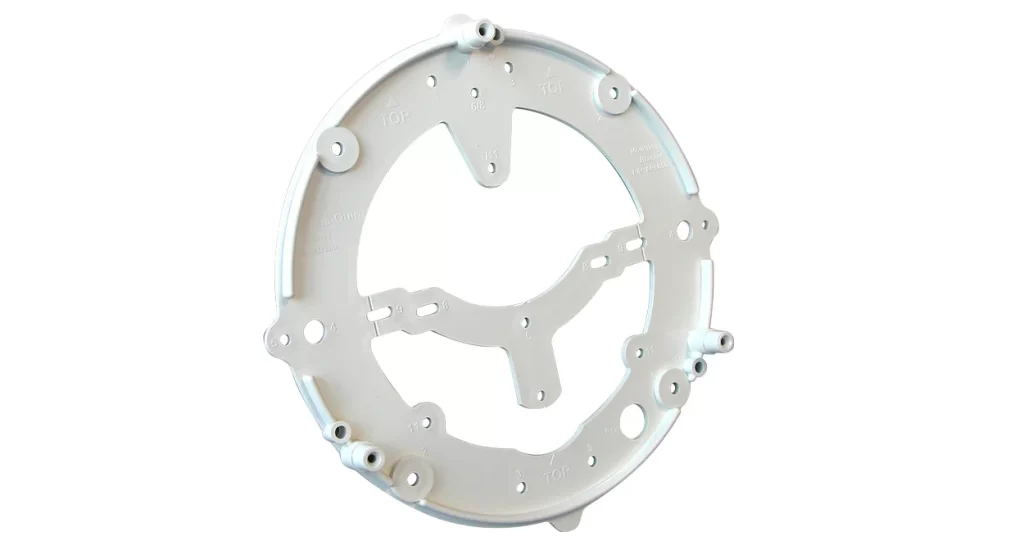

QC Retro-Fit Lights are supplied with the unique waterproof Quick Connect Plug Kit and Universal Mounting Bracket – allowing replacement of all other brands of surface mounted lights in concrete pools.
