Booster Pump

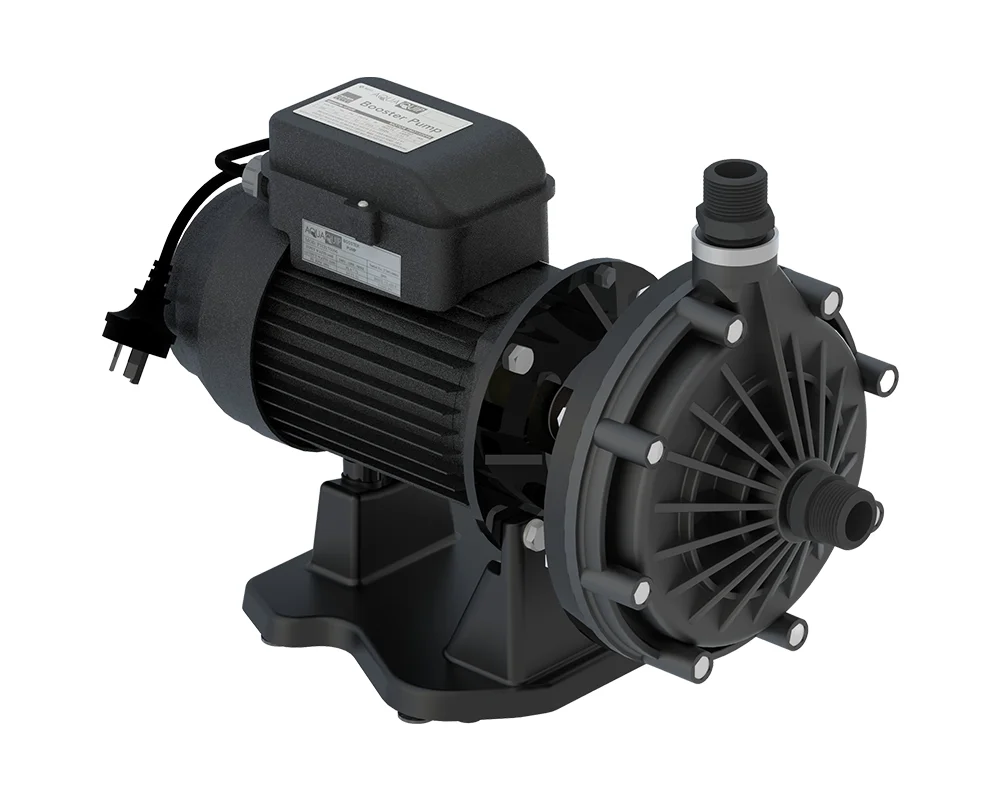

boosterpumpAqua-Quip Booster Pumps operate on all pressure-driven pool cleaner systems.

Compact and simple to install, the Aqua-Quip Booster Pump operates quietly and is the perfect partner for the Jet-Vac Automatic Pool Cleaner. Robust and reliable design ensures a long life with minimal maintenance. It also operates all other pressure driven pool cleaners.

The booster pump – to be installed after the filter, is designed to suit rigid PVC connections with barrel unions or flexible hoses.

Booster pumps can only operate whilst the main pool pump is running.

  • 40mm barrel, fixed PVC
  • Flexible plumbing option, ideal for confined spaces
CODEITEM #PART #DESCRIPTION
LJP0011LA021-5IMPELLOR
LJP0022LA05-5BRASS SHAFT EXTENSION
LJP0033LA11-5BOLT – VOLUTE
LJP0044LA12-5NUT – VOLUTE
LJP0055LA41-5O-RING – VOLUTE
LJP0066LA13-5BOLT – MOTOR
LJP0097LA39-5VOLUTE (FACE PLATE)
LJP0108LA49-5DPVC FITTING KIT (suction and discharge)
APP0139LA06-5PUMP SHAFT SLEEVE
LJP01310LA385DRAIN PLUG
LJP01411LA375O-RING FOR DRAIN PLUG
LJP01512LA41PUMP STAND – NEW STYLE
LJP01713LA295SEAL PLATE
APP00915MECHANICAL SEAL ASSEMBLY
APP07916IMPELLOR O-RING
LJP01217FLEXI PLUMBING KIT (suction and discharge)
BPF0011834010VALVE ADAPTOR 40mm x 25mm thread
QPF0371936590BARREL UNION 40mm
MIS012201432STAINLESS STEEL CLAMP

Booster Pump Diagram
